Source: SJM/Abbott Website
|

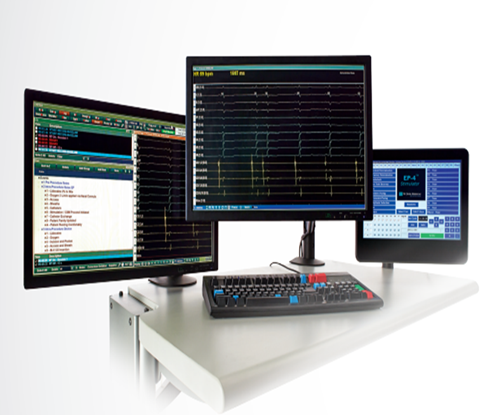

WORKMATE CLARIS System Display Plus
Display workstation ( DWS ) : HP Workstation
Module Comunication : Isolated 100 base - T Ethernal
Operating system : Windows 7
Computer : Intel Xeon Dual Quad core
Computer memory : 8 GB
Hard Drives : Dual SATA hard drives with RAID mirroring
Data Storage : DVD R R/W drive and External storage via USB
Filters : 14 high pass ranging from 0.05-200 Hz, plus DC 12 low pass ranging from 10-500 Hz
Keyboard : WorkMate Claris System customized keyboard
Mouse : Two-button optical scroll mouse
Monitor : 2 Dual-wide screen monitors, 16 x 9 aspect ratio
Printer : Laser Jet Printer

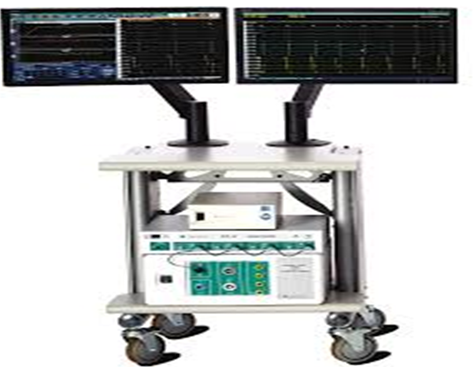

Main Workstation Cart
EP-4 Stimulator Touchscreen Computer : Touchscreen computer
Main Isolation Transformer : 1500 VA, 220 VAC
Weight: 42 lbs Width: 16.1 Inch Height: 5.6 inch
Workstation Cart as Installed, Weight: 380 lbs Width: 48 inch Height: 58 inch
Auto Record Function
Automatic Baseline Measurement
GUI on Screen Stimulator
WorkMate Claris System Amplifier Base
EP-4 Programmable Stimulator, Isolated stimulus channels: 4
Monitor : 16:9 LCD Monitor without Stand
Bedside Cart
Bedside Isolation Transformer : 500 VA, 220 VAC
Fiber Optic Cable
More information here.
|
Source: SJM/Abbott Website
|

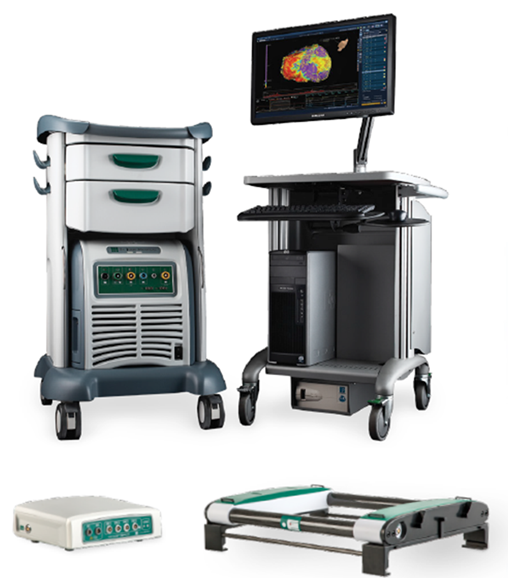

ENSITE Velocity Cardiac Mapping System
Automated. Flexible. Precise.
Model Creation"
3D model with CT - scan like detail - 27 times higher point density
Flexibility to model and map with ANY catheter
Sparkle Map
Live activation map overlaid on voltage Map (2 Map at the same time)
No need to change view from voltage map to Propagation Map.
Fractination Map
Display areas of fractionation with fractionation map type to highlight areas of interest
Color spectrum indicates fractionation count as number of tick marks detected within RAI
High density CFE map
Improvement
Small Patch, smaller size
Review and analyze data faster via USB export
Automated sheath filter
Theraphy anotation, give mark of lession annotation that can also show on the map display
Array
Array baloon, one beat mapping
Single beat Unipolar signal analysis using tracking virtual signal to identify he earliest activation point and exit for Focal Tachycardia
Image integration
Integration with MRI Imaging
Geometry with CT image Fusion
Multi morphology Mapping
Multi morphology map atthe same time, to help identifi multifoal arryhtmias
Compare timing Map
Showing Voltage Map and LAT Map at the same time to help identify pathway of re-entry
Kit, EnSite™ AutoMap Module v.1.0
Create Higher Density maps in less time using ANY Catheter
Collect data with no point limit and better trust the data collected, due to the automatic deletion of points outside user-specified criteria—eliminating time-consuming evaluation of each data point.
Score Map
Using score map type to highlight area n the highest morphology match to template when pace mapping
Useful for matching VES morphology based on percentation of similiarity.
Turbo Map
Reviewing secondary morphology desire with 10x Faster automatically matching the morphology without need to move catheter
Useful for multiple morphology VES or AES
AutoMark Module : Visualize parameters associated with lesion formation on the 3-D model in real-time
ArrayLink : Connect array Catheter to Amplifier
CathLink : Connect catheters to the Ensite Precision
Dimension : 10.5 Hz x 5W x 2 D inches (26.7 H x 12.7 W x 5 D cm)
Weight: 1.5 lbs (0,7kg)
NavLink : Connect the Ensite Precision Surface Electrodes and System Reference Patches to the Amplifier
Dimension: 14 x 8.9 x 6.4 cm
Weight: 0.2 Kg
NavX Patch Available for all size Adult and Pediatric
Navx Patch Can be used for 18 hours after validating
Monitor DWS, 24 inch
Remote Monitor, 24 inch
Fiber Optic Cable - 100 ft. Connect DWS to Remote Monitor Stand
Rail Clamp : Connect navlink or cathlink to patient
Cart For Amplifier
Cart For DWS
Remote Monitor Stand : Compatible with 24
Equipotential Cable : Cable grounding
ECG Cable : Connect monitor ECG to Amplifier
More information here.
|
Source: SJM/Abbott Website
|
Safire Bi-Directional Ablation
Bi-Directional Ablation Catheters 4 & 8 mm Tip Universal Temperature Monitoring Quadripolar 7F :
Automatic Steering Lock reduces catheter manipulation, ComfortGrip Ergonomic Handle, Thermocouple and Thermistor temperature monitoring capability
More information here.
|
Source: SJM/Abbott Website
|
Tacticath Contact Force Ablation
Tacticath Contact Force Ablation Catheter, Sensor Enabled :
Tacticath Contact Force Ablation Catheter, Sensor Enabled feature a tri-axial optical force sensor, 7,5 F shaft and 8 F distal section, 2-2-2 spacing, it has fluid lumen connected within 6-hole tip electrode for salide irrigation, available with Uni Directional and Bi Directional curve
More information here.
|
Source: SJM/Abbott Website
|
Flexability
Irrigated Ablation Catheters
Ergonomic uni and bi directional handles, D, F, and J curve options, 8F irrigated ablation catheters : Strong Safety and effectiveness profile in a predictable, durable cardiac ablation catheter.
More information here.
|
Source: SJM/Abbott Website
|
Agilis NxT
Steerable Introducers 8,5 F
Agilis NxT steerable introducer with tip market, 81 cm lumen length, 61 cm usable length, dilator and 180 cm super stiff guidewire with finger straightenable 3 mm J :
- Small Curl Dual Reach Bi-Directional (16,8 mm)
- Medium Curl Dual-Reach Bi-Directional (22,4 mm)
More information here.
|
Source: SJM/Abbott Website
|
Advisor HD Grid
Advisor HD Grid Mapping Catheter, Sensor Enabled 8F
Advisor HD Grid, placement of 16 electrodes for faster data collection, grid pliability and catheter contact to maneuver within any chamber, address bidirectional sensitivity, 3 mm spacing, 16 grids, 2 shafts, 105 cm usable length
More information here.
|
Source: SJM/Abbott Website
|
BRK
BRK Transeptal Needle :
-Bevel angle 50 degrees, 71 cm, 407200, 407201
More information here.
|
Source: SJM/Abbott Website
|

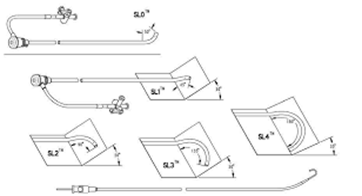

Swartz
Long Sheath :
Swartz Braided Transeptal Guiding Introducers SL Series, 8F/ 8.5F, Sheath Length 63 cm, Dilator Length 67 cm, Curve SL0/ SL1
Fast Cath Guiding Introducers Swartz SR Series, 8F/ 8.5F, Sheath Length 63 cm, Dilator Length 67 cm, Curve SR0
More information here.
|
Source: SJM/Abbott Website
|
Fixed Diagnostic
Response
Decapolar Catheter consist of 10 electrodes with Torque control and pushability, multiple curve options for ease of placement, convinient cable connections
Supreme
Quadripolar Catheter consist of 4 electrodes with Torque control and pushability, multiple curve options for ease of placement, convinient cable connections, distal electrode 2 mm from catheter tip
More information here.
|
